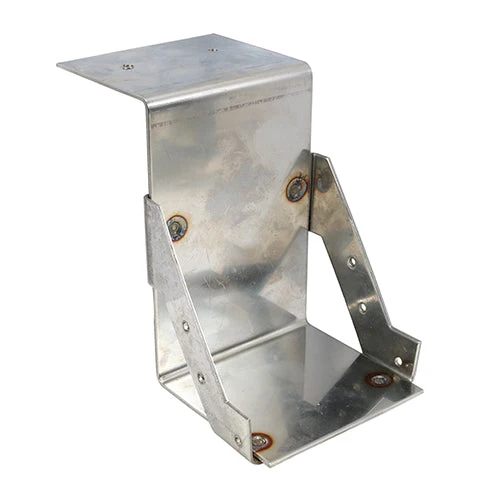

Welded Masonry Joist Hanger – Galvanised – 100 x 150mm (6 Pack)
Designed to support 100 x 150mm timber joists from brick or block walls. This welded masonry joist hanger can be built into new masonry or used for renovation work by raking out existing brickwork, providing a secure joist bearing and a dependable connection for floor and roof structures.
Key Features
- Designed for supporting timber joists from brick or block walls.
- Welded construction for a strong, rigid hanger.
- Galvanised (pre-galvanised) steel for corrosion resistance.
- Conforms to Eurocode 6 and service class 2.
- Manufactured to BS EN 845-1:2013+A1:2016.
- 75mm bearing for consistent joist support.
- 2.4mm thickness.
- 6 nail holes (3.75mm) for secure fixing.
- Safe working load: 3.5kN.
- Supplied as a single unit (MOQ 6) for trade orders and site stock.
Typical Applications
- Supporting floor joists built into brickwork and blockwork.
- New-build masonry where hangers are built-in during construction.
- Refurb and repair work where masonry is raked out to install the hanger.
- General timber-to-masonry joist support where a consistent joist bearing is required.
Specifications
| Product code | 100150WMH |
|---|---|
| Type | Welded |
| Finish | Galvanised |
| Joist size (W x H) | 100 x 150mm |
| Width (W) | 100mm |
| Height (H) | 140mm |
| Bearing (B) | 75mm |
| Thickness | 2.4mm |
| Nail holes | 6 (3.75mm) |
| Safe working load | 3.5kN |
| Approval | BS 5628 |
| CE standard | BS EN 845-1:2013+A1:2016 |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Material | Carbon Steel |
| Service class | 2 |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received | 6 |
| Pack dimensions (L x W x H) | 140 x 100 x 75mm |
| Pack weight | 0.73kg |
