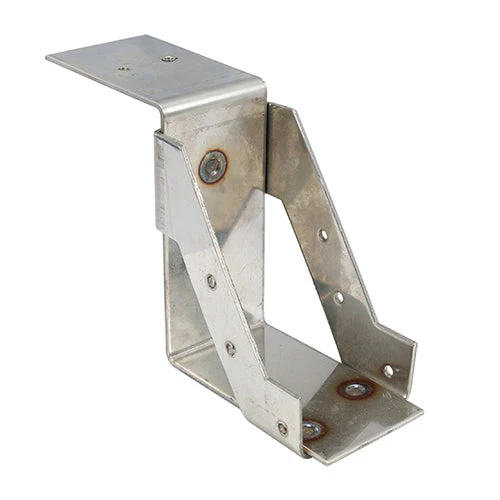

Welded Masonry Joist Hanger – A2 Stainless Steel – 47 x 100mm (6 Pack)

Designed to support 47 x 100mm timber joists from a brick or block wall. This welded masonry joist hanger can be installed by building into the wall or, for renovation work, by raking out existing brickwork. Manufactured from A2 (304) stainless steel for excellent corrosion resistance, making it suitable for corrosive environments and base materials with inherent corrosive characteristics (e.g. green oak).

Key Features

• Designed to support timber joists from brick or block walls.
• Install by building into masonry or retrofit by raking out existing brickwork.
• Welded construction for a strong, rigid hanger.
• Manufactured from A2 (304) stainless steel for high corrosion resistance.
• Conforms to Eurocode 6 and service class 3.
• 80mm bearing for consistent joist support.
• 6 nail holes (3.75mm) for secure fixing.
• Safe working load: 3.5kN.
• Supplied as a single unit – ideal for trade orders and site stock.

Typical Applications

• Supporting floor joists built into brickwork and blockwork.
• New-build masonry where hangers are built-in during construction.
• Refurb projects where masonry is raked out to install the hanger.
• Installations in urban/industrial locations where improved corrosion resistance is required.
• Timber structures using green oak or other potentially corrosive base materials.

Specifications

Product code	47100WMHS
Material	Austenitic Stainless Steel (A2-304)
Type	Welded
Joist size (W x H)	47 x 100mm
Width (W)	47mm
Height (H)	100mm
Bearing (B)	80mm
Thickness	2.4mm
Nail holes (3.75mm)	6
Safe working load	3.5kN
Approval	BS 5628
CE standard	BS EN 845-1:2013+A1:2016
Eurocode	6
Service class	3
Corrosion rating (1–5)	4 – Urban & industrial areas with a moderate salt atmosphere
Pack type	Unit
Pack quantity	1 Each
Packs Received	6
Pack dimensions (L x W x H)	80 x 47 x 100mm
Pack weight	0.34kg
