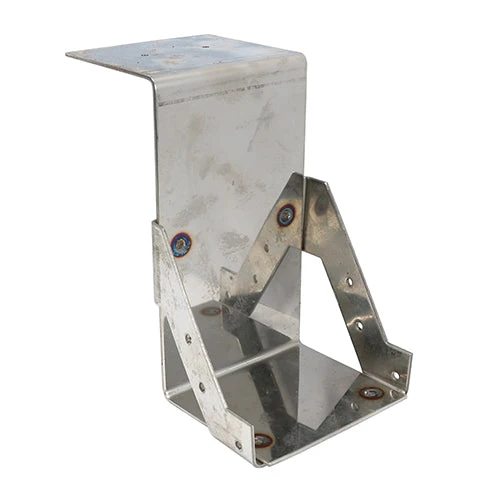

Welded Masonry Joist Hanger – A2 Stainless Steel – 100 x 175mm (6 Pack)

Designed to support 100 x 175mm timber joists from a brick or block wall. This welded masonry joist hanger can be installed by building into the wall, or for renovation work by raking out existing brickwork. Manufactured from A2 stainless steel for excellent corrosion resistance, making it ideal for corrosive environments and timber with inherent corrosive characteristics such as green oak.

Key Features

• Designed to support timber joists from brick or block walls.
• Install by building into masonry or retrofit by raking out brickwork.
• Manufactured from A2 (304) stainless steel for high corrosion resistance.
• Conforms to Eurocode 6 and service class 3.
• Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber.
• Safe working load: 3.5kN.
• 80mm bearing and 6 nail holes (3.75mm) for secure fixing.
• 2.4mm thick welded construction.

Typical Applications

• Supporting floor and roof joists built into brickwork and blockwork.
• Renovation work where masonry is raked out to install the hanger.
• Projects in urban/industrial locations where improved corrosion resistance is required.
• Timber structures using green oak or other potentially corrosive base materials.

Specifications

Material	Austenitic Stainless Steel (A2-304)
Type	Welded
Joist size (W x H)	100 x 175mm
Width (W)	100mm
Height (H)	165mm
Bearing (B)	80mm
Thickness	2.4mm
Nail holes (3.75mm)	6
Safe working load	3.5kN
Approval	BS 5628
CE standard	BS EN 845-1:2013+A1:2016
Eurocode	6
Service class	3
Corrosion rating (1–5)	4 – Urban & industrial areas with a moderate salt atmosphere
Pack type	Unit
Pack quantity	1 Each
Packs Received	6
Pack dimensions (L x W x H)	80 x 100 x 165mm
Pack weight	0.65kg
