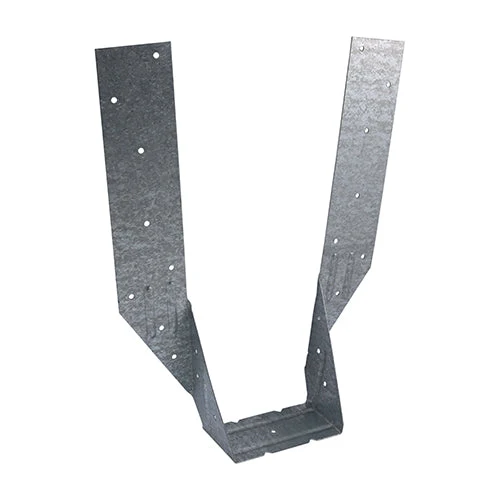

Timber Hangers – No Tag – Galvanised - 90 x 125 to 220mm (20 Pack)
Designed to give a quick and simple solution for timber-to-timber connections such as joists and stairwell trimming. This No Tag timber hanger is manufactured from pre-galvanised steel to provide a high level of corrosion resistance, with a design that allows the use of fewer nails for faster installation. Suitable for 90mm timber and can take up to a 220mm deep joist.
Key Features
- No tag timber hanger for fast timber-to-timber connections (joists and stairwell trimming).
- Manufactured from pre-galvanised carbon steel with a galvanised finish.
- Designed to use fewer nails for faster installation.
- To suit 90mm joists with a depth range of 125–220mm.
- 60mm bearing (B) for consistent support.
- 23 fixing holes (to suit 3.75mm nails).
- 0.8mm thickness.
- Conforms to Eurocode 5 and service class 2.
- Tested to BS 5268 safe working loads.
Typical Applications
- Supporting floor joists and other timber members in timber frameworks.
- Stairwell trimming and similar timber trimming tasks.
- General timber-to-timber construction where a strong, quick-fit hanger is required.
Specifications
| Finish | Galvanised |
|---|---|
| Type | No Tag |
| Material | Carbon Steel |
| Joist size (W x H) | 90 x 125 to 220mm |
| Width (W) | 90mm |
| Bearing (B) | 60mm |
| Leg (L) | 283mm |
| Thickness | 0.8mm |
| Nail holes | 23 (3.75mm) |
| Approval | BS 5268 |
| Eurocode / Service class | Eurocode 5 / Service class 2 |
| Safe working load (BS 5268) – Short term | 7.21kN |
| Safe working load (BS 5268) – Medium term | 6.86kN |
| Safe working load (BS 5268) – Long term | 6.00kN |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Receieved | 20 |
| Pack dimensions (L x W x H) | 60 x 90 x 283mm |
| Pack weight | 0.22kg |
