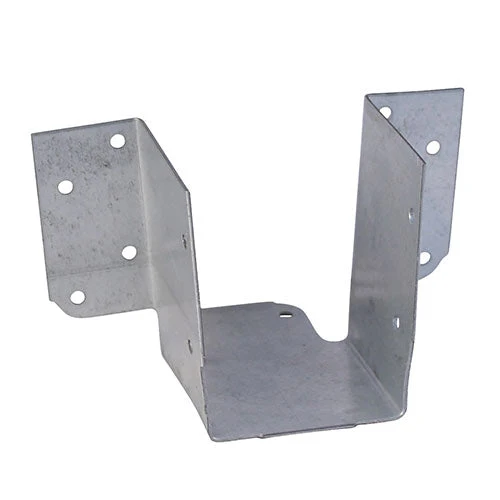

Timber Hangers – Mini Plus – Galvanised - 44 x 100 to 150mm (20 Pack)
Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. Suitable for light duty applications including ceiling joists and trimmers, these Mini Plus hangers are manufactured from pre-galvanised steel for corrosion resistance, with a tag on the base to help avoid rotation for a more stable fix.
Key Features
- Mini Plus timber hanger for light duty timber-to-timber connections (e.g. loft hatches and decking).
- Suitable for ceiling joists, decking and trimmers.
- Galvanised finish (pre-galvanised carbon steel) for corrosion resistance.
- Anti-rotation base tag helps avoid hanger rotation.
- Conforms to Eurocode 5 and service class 2.
- To suit joists: 44 x 100–150mm.
- Bearing (B): 50mm.
- 20 nail holes (to suit 3.75mm nails) for a secure fixing.
- 1mm thickness.
- Safe working load (BS 5268): 4.75kN (short) / 4.53kN (medium) / 3.96kN (long).
- Supplied as a single unit (MOQ 20) – ideal for trade orders and site stock.
Typical Applications
- Light-duty timber framing connections for loft hatches.
- Decking and small timber support work.
- Ceiling joists and trimmers where a compact hanger is needed.
Specifications
| Finish | Galvanised |
|---|---|
| Material | Carbon Steel |
| Type | Mini Plus |
| Joist size (W x H) | 44 x 100 to 150mm |
| W (mm) | 44 |
| H (mm) | 97 |
| Bearing B (mm) | 50 |
| Thickness (mm) | 1 |
| Nail holes (3.75mm) | 20 |
| Approval | BS 5268 |
| Eurocode | 5 |
| Service class | 2 |
| Safe working load (kN) – Short term | 4.75 |
| Safe working load (kN) – Medium term | 4.53 |
| Safe working load (kN) – Long term | 3.96 |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received/th> | 20 |
| Pack dimensions (L x W x H) | 50 x 44 x 97mm |
| Pack weight | 0.13kg |
