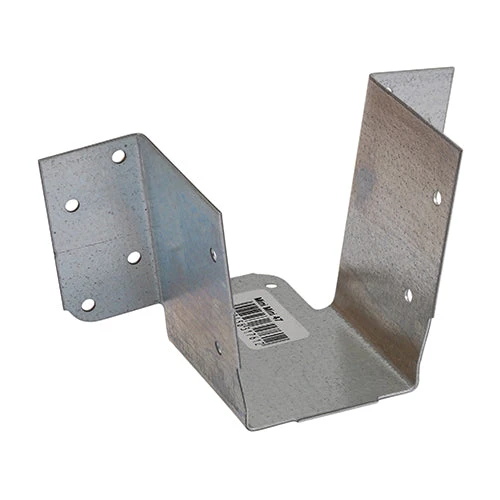

Timber Hangers – Mini – Galvanised - 47 x 75–100mm (20 Pack)

Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. Suitable for light duty applications including ceiling joists and trimmers, these mini hangers are manufactured from pre-galvanised steel for corrosion resistance, with a tag on the base to help avoid rotation for a more stable fix.

Key Features

• Mini timber hanger for light duty timber-to-timber connections (e.g. loft hatches and decking).
• Suitable for ceiling joists, decking and trimmers.
• Galvanised finish (pre-galvanised steel) for corrosion resistance.
• Anti-rotation tag on the base helps avoid hanger rotation.
• Conforms to Eurocode 5 and service class 2.
• To suit joists: 47 x 75–100mm.
• Bearing (B): 50mm.
• 14 nail holes (to suit 3.75mm nails).
• 1mm thickness.
• Safe working load (BS 5268): 4.17kN (short) / 3.97kN (medium) / 3.47kN (long).
• Supplied as a single unit (MOQ 20).

Typical Applications

• Light-duty timber framing connections for loft hatches.
• Decking and small timber support work.
• Ceiling joists and trimmers where a compact hanger is needed.

Specifications

Finish	Galvanised
Material	Carbon Steel
Type	Mini
Joist size (W x H)	47 x 75 to 100mm
W (mm)	47
H (mm)	67
Bearing B (mm)	50
Thickness (mm)	1
Nail holes (3.75mm)	14
Approval	BS 5268
Eurocode	5
Service class	2
Safe working load (kN) – Short term	4.17
Safe working load (kN) – Medium term	3.97
Safe working load (kN) – Long term	3.47
Corrosion rating (1–5)	2 – Occasionally damp/wet, rural and sheltered areas
Pack type	Unit
Pack quantity	1 Each
Packs Receieved	20
Pack dimensions (L x W x H)	50 x 47 x 67mm
Pack weight	0.09kg
