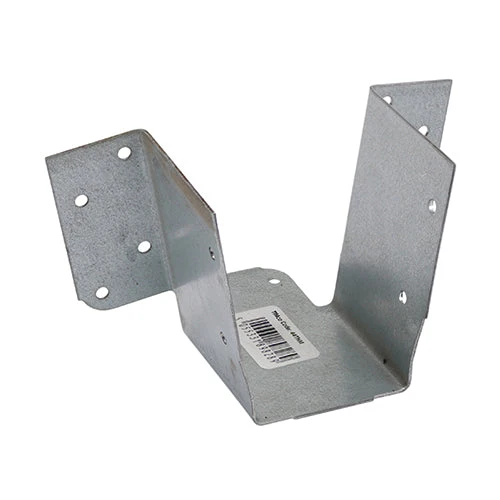

Timber Hangers – Mini – A2 Stainless Steel - 44 x 75 to 100mm (10 Pack)

Designed to give a small and economic lightweight timber-to-timber connection for jobs such as loft hatches and decking. Manufactured from A2 (304) stainless steel for excellent corrosion resistance, with a tag on the base to help avoid rotation for a more stable, consistent fix in demanding environments.

Key Features

• Mini timber hanger for light duty timber-to-timber connections (e.g. loft hatches and decking).
• Suitable for ceiling joists, decking and trimmers.
• Manufactured from Austenitic Stainless Steel (A2-304) for strong corrosion resistance.
• Conforms to Eurocode 5 and service class 3.
• Base tag helps avoid hanger rotation.
• To suit joists: 44 x 75 to 100mm.
• Bearing (B): 50mm.
• 20 nail holes (to suit 3.75mm nails) for secure fixing.
• 1mm thickness.

Typical Applications

• Light-duty timber framing connections for loft hatches.
• Decking and small timber support work.
• Ceiling joists and trimmers where a compact hanger is needed.
• Areas where improved corrosion resistance is required (corrosion rating 4).

Specifications

Material	Austenitic Stainless Steel (A2-304)
Type	Mini
Joist size (W x H)	44 x 75 to 100mm
Width (W)	44mm
Height (H)	97mm
Bearing (B)	50mm
Thickness	1mm
Nail holes	20 (3.75mm)
Approval	BS 5268
Eurocode / Service class	Eurocode 5 / Service class 3
Safe working load (BS 5268) – Short term	4.75kN
Safe working load (BS 5268) – Medium term	4.53kN
Safe working load (BS 5268) – Long term	3.96kN
Corrosion rating (1–5)	4 – Urban & industrial areas with a moderate salt atmosphere
Pack type	Unit
Pack quantity	1 Each
Packs Received	10
Pack dimensions (L x W x H)	50 x 44 x 97mm
Pack weight	0.12kg
