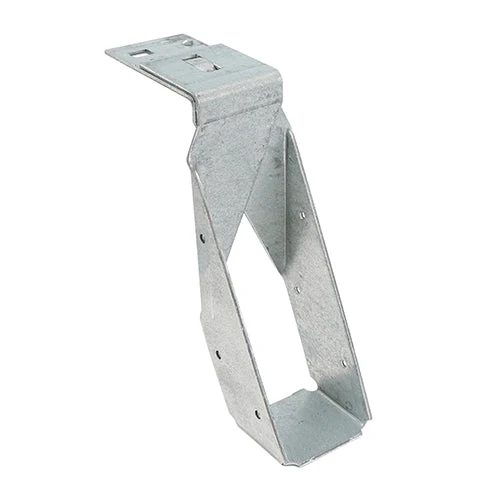

Single Piece Masonry Hanger – Galvanised – 47 x 175mm (10 Pack)
Designed to support 47 x 175mm timber joists from brick or block walls. This single piece masonry hanger can be built into new masonry or used for renovation work by raking out existing brickwork, giving a secure joist bearing and a reliable fixing point for floor and roof structures.
Key Features
- Designed for supporting timber joists from brick or block walls.
- Galvanised / pre-galvanised steel for corrosion resistance.
- Conforms to Eurocode 6 and service class 2.
- Manufactured to BS EN 845-1:2013+A1:2016.
- Straight top flange design.
- No welds for strong, consistent construction.
- Hangers above 150mm are manufactured 10mm less to allow for notching and regularised timber.
- 6 nail holes (3.75mm) for secure fixing.
- Safe working load: 5.4kN.
- Supplied as a single unit (MOQ 10) – ideal for site stock and renovations.
Typical Applications
- Supporting floor joists built into brickwork and blockwork.
- New-build masonry where hangers are built-in during construction.
- Refurb work where masonry is raked out to install the hanger.
- General timber-to-masonry support where a consistent joist bearing is required.
Specifications
| Product code | 47175MH |
|---|---|
| Joist size (W x H) | 47 x 175mm |
| Width (W) | 47mm |
| Height (H) | 165mm |
| Bearing (B) | 75mm |
| Thickness | 2.4mm |
| Nail holes | 6 (3.75mm) |
| Safe working load | 5.4kN |
| Characteristic value | 9.7kN (Eurocode 6) |
| Material | Carbon Steel |
| Finish | Galvanised |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs Received | 10 |
