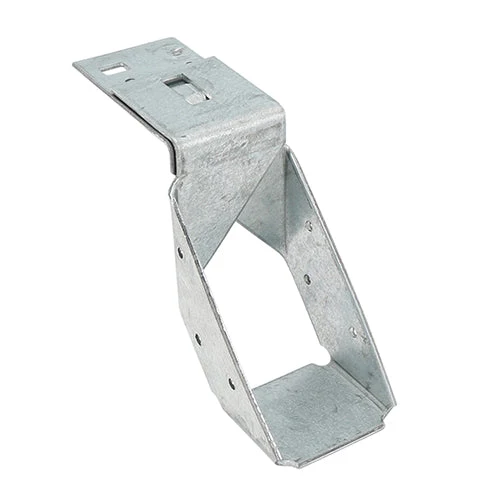

Single Piece Masonry Hanger – Galvanised – 47 x 100mm (10 Pack)

Designed to support 47 x 100mm timber joists from brick or block walls. This single piece masonry hanger can be built into new masonry or used for renovation work by raking out existing brickwork, giving a secure and consistent joist bearing with a clean, dependable finish.

Key Features

• Designed for supporting timber joists from brick or block walls.
• Galvanised (pre-galvanised) steel for corrosion resistance.
• Conforms to Eurocode 6 and service class 2.
• Manufactured to BS EN 845-1:2013+A1:2016.
• Straight top flange design.
• No welds for a strong, consistent construction.
• Safe working load: 5.4kN.
• 6 nail holes (3.75mm) for secure fixing.
• Supplied as a single unit (MOQ 10).

Typical Applications

• Supporting floor joists built into brickwork and blockwork.
• New-build masonry where hangers are built-in during construction.
• Refurb work where existing masonry is raked out to install the hanger.
• General timber-to-masonry support where a consistent joist bearing is required.

Specifications

Product	Single Piece Masonry Hanger – Galvanised
Product code	47100MH
Joist size (W x H)	47 x 100mm
Width (W)	47mm
Height (H)	100mm
Bearing (B)	80mm
Nail holes	6 (3.75mm)
Safe working load	5.4kN
CE standard	BS EN 845-1:2013+A1:2016
Corrosion rating (1–5)	2 – Occasionally damp/wet, rural and sheltered areas
Material	Carbon Steel
Finish	Galvanised
Pack type	Unit
Pack quantity	1 Each
Packs Received	10
Carton quantity (packs)	50
