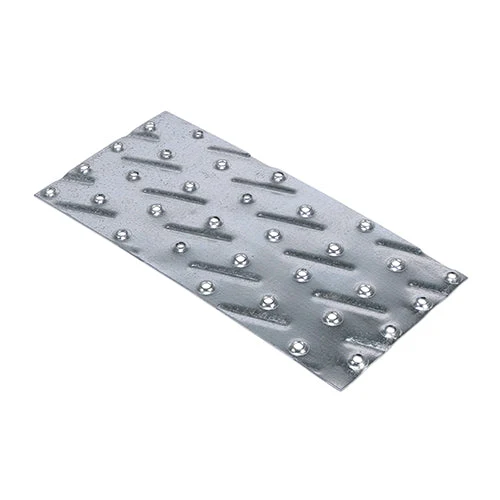

Nail Plates – Galvanised (85 x 178mm) (20 Pack)
Versatile perforated plates used for connecting or repairing timber. All holes are pressed countersunk to aid nail location and give a flush finish, while strengthening ribs add rigidity for a more secure reinforcement. Manufactured from galvanised carbon steel to provide a high level of corrosion resistance.
Key Features
- Pressed countersunk holes help locate nails and achieve a flush finish.
- Strengthening ribs for added rigidity.
- Galvanised finish for improved corrosion resistance (rating 2).
- 32 nail holes sized 3.75mm for strong, multi-point fixing.
- CE standard: BS EN 14545:2008 (stated).
Typical Applications
- Repairing split, cracked or weakened timber sections.
- Reinforcing timber-to-timber joints in studwork, framing and general carpentry.
- Strengthening splices and overlaps where a low-profile connector plate is required.
Specifications
| Plate size (W × L) | 85 × 178mm |
|---|---|
| Width (W) | 85mm |
| Length (L) | 178mm |
| Thickness | 1mm |
| Material | Carbon Steel |
| Finish | Galvanised |
| Nail holes | 32 (3.75mm) |
| CE standard | BS EN 14545:2008 |
| Corrosion rating (1–5) | 2 – Occasionally damp/wet, rural and sheltered areas |
| Pack type | Unit |
| Pack quantity | 1 Each |
| Packs | 20 |
| Pack dimensions (L × W × H) | 1 × 85 × 178mm |
| Pack weight | 0.11kg |
