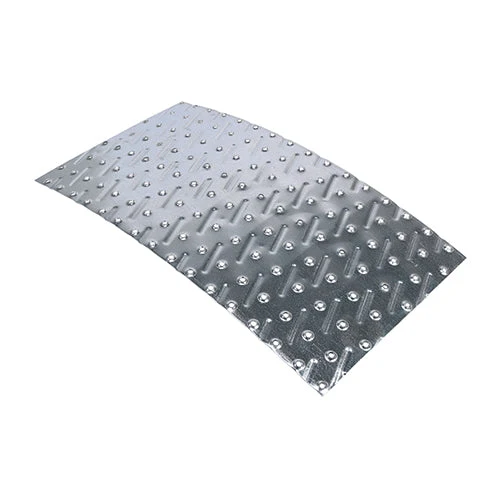

Nail Plates – Galvanised (178 x 338mm) (10 Pack)

Versatile perforated plates used for connecting or repairing timber. Each hole is pressed countersunk to help locate the nail and achieve a flush finish, while strengthening ribs add extra rigidity for a more secure joint reinforcement or repair.

Key Features

• 178 x 338mm nail plate for timber repairs and reinforcement.
• Pressed countersunk holes help locate nails and create a flush finish.
• Strengthening ribs for added rigidity.
• Galvanised finish for improved corrosion resistance.
• 68 nail holes (3.75mm) for strong, multi-point fixing.
• 1mm carbon steel plate.
• CE standard: BS EN 14545:2008 (stated).
• Corrosion rating: 2 (occasionally damp/wet, rural and sheltered areas).

Typical Applications

• Repairing split, cracked or weakened timber sections.
• Reinforcing timber-to-timber joints in studwork, framing and general carpentry.
• Strengthening overlaps, splices and repair points where a low-profile connector is required.

Specifications

Plate size (W × L)	178 × 338mm
Width (W)	178mm
Length (L)	338mm
Thickness	1mm
Material	Carbon Steel
Finish	Galvanised
Nail holes	68 (3.75mm)
CE standard	BS EN 14545:2008
Corrosion rating (1–5)	2 – Occasionally damp/wet, rural and sheltered areas
Pack type	Unit
Pack quantity	1 Each
MOQ	10
Carton quantity (packs)	50
Pack dimensions (L × W × H)	1 × 178 × 338mm
Pack weight	0.44kg
Barcode (EAN)	5022456314734
TIMco product code	178NP
