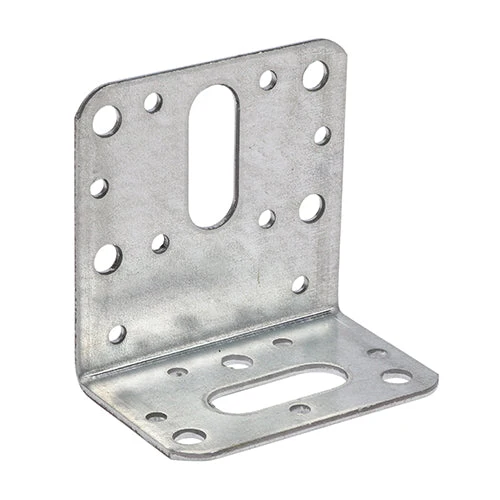

Angle Brackets – Galvanised (50 x 50mm) (25 Pack)

Versatile, general-purpose 90° bracket used to strengthen timber joints in structural and general construction work. Manufactured from galvanised steel to provide a high level of corrosion resistance, it includes multiple fixing holes and slots for flexible, secure installation.

Key Features

• 50 x 50mm 90° angle bracket for reinforcing timber joints.
• Galvanised finish for improved corrosion resistance.
• 2mm thick carbon steel construction for strength and rigidity.
• 11 nail holes (3.75mm) for secure fixing.
• 9 screw holes (6.0mm) to suit common fixings.
• 2 bolt slots (M10) for adjustable fixing positions.
• Corrosion rating: 2 (occasionally damp/wet, rural and sheltered areas).

Typical Applications

• Strengthening timber-to-timber joints in studwork, framing and general carpentry.
• Reinforcing corners in sheds, outbuildings and timber structures.
• General repairs and refurb work where added joint rigidity is required.

Specifications

Size (L × H)	50 × 50mm
Width (W)	62mm
Thickness	2mm
Material	Carbon Steel
Finish	Galvanised
Nail holes	11 (3.75mm)
Screw holes	9 (6.0mm)
Bolt slots	M10 (Qty 2)
Corrosion rating (1–5)	2 – Occasionally damp/wet, rural and sheltered areas
Pack type	Unit
Pack quantity	1 Each
Pack dimensions (L × W × H)	50 × 62 × 50mm
Pack weight	0.09kg
Packs Received	25
